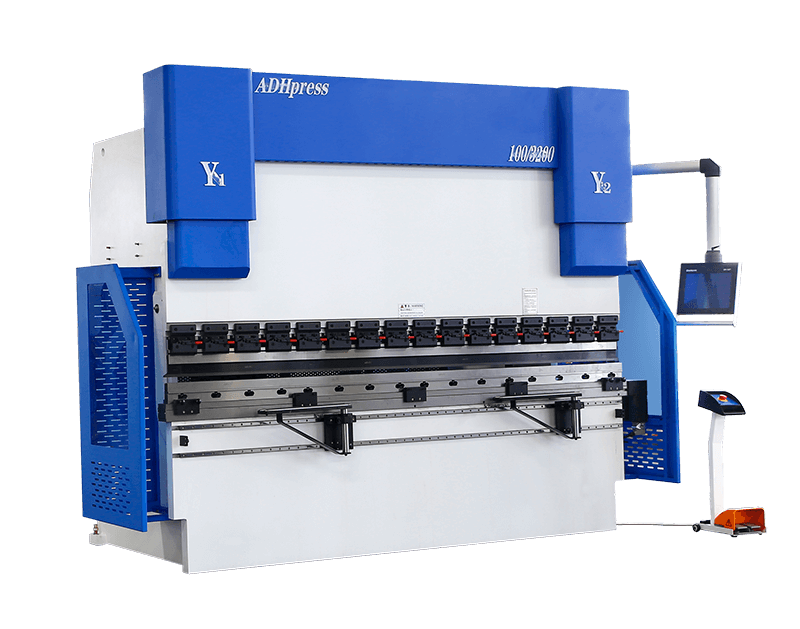

General Features
- New EU streamlined design
- The whole frame of the press brake adopt integrated welding, and by tempering to eliminate the internal stress
- The press brake frame adopt shot blast to remove rust and sprayed with anti-rust treatment
- The frame is formed by the imported CNC three-dimensional machining center in one process, which ensures the parallelism and verticality of each mounting surface.
- The controller can control the Y1 and Y2 axes (Y1 controls the left cylinder and Y2 controls the right cylinder) to ensure the synchronous movement of the ram
- Quiet speed waiting and fast down, (about 25 decibels), low noise during pressing and return (the pressure in the hydraulic system is the closed loop control of the servo main motor)
- The main oil pump does not apply work under the drive of the servo main motor, and the energy consumption is 60% lower than that of the general CNC press brake machine
- The machine oil temperature is stable, which extending the service life of various components of the hydraulic system
- More technical innovations to ensure the quality of bending, and powerful, easy to operate
- The press brake adopt the latest high-frequency hydraulic control technology, which is faster, more efficient and more stable
- The best parameter ratio, the optimal core configuration, the performance is stable, the operation is more convenient, and the bending of various workpieces in complex shape can be realized
STANDARD COMPONENTS
- Hydraulic Valve: HAWE-Hoerbiger/Rexroth
- Oil Pump: VOITH/ECKERLE
- Oil Cylinder: Made in China
- Main Motor: Siemens Normal Motor; Estun/Inovance/Delta Servo Motor
- Grating Ruler: Fagor/GIVI
- Crowning: Motorized Crowning
- Pedal Switch: Roller Type
- Electrics: Schneider
- Clamps: Quick Clamp
- Ball Screw Rod: PMI
- Linear Guide: Zeen/Schneeberger
- Front Support: Steel Type/Support Equiped with Dual Linear Guide/Roller Support
- Backgauge Motor: Estun/Delta
- Rear Finger: Big Finger
- Finger Amount: 2/3/4/6
- Backgauge Axis: 3+1
- Front Protection: Left&Right Guard
- Rear Protection: Simple Rear Guard
- Controller: Delem DA53T
OPTIONAL
- Main Motor: WNM
- Grating Ruler: Heidenhain
- Clamps: Advanced Quick Clamp/Hydraulic Clamp
- Ball Screw Rod: HIWIN
- Linear Guide: HIWIN
- Backgauge Motor: Yaskawa
- Finger Amount: Customized
- Backgauge Axis: 4+1/6+1/8+1
- Temperature Control Device: Heating Device / Air Cooling Device / Air Conditioner Oil Cooler
- Front Protection: Custom Sheet Metal Guard/Light Curtain Protection/Laser Protection
- Rear Protection: Custom Sheet Metal Guard/Light Curtain Protection
- Controller: Customized
