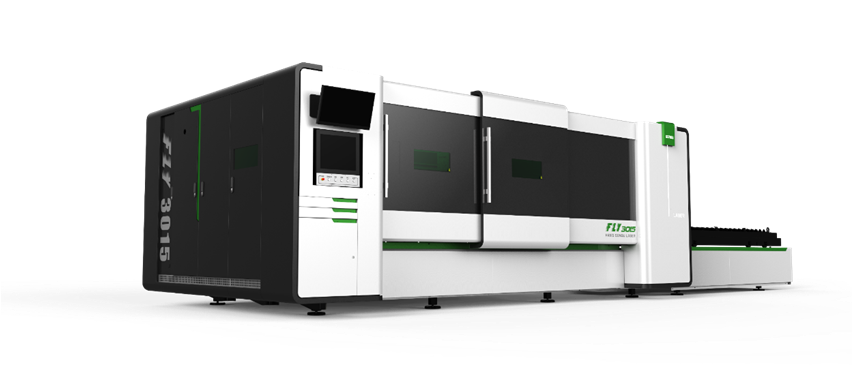

Parameter |
3015 |
4020 |
6020 |
|
Working size |
3000 x 1500 mm | 4000 x 2000 mm | 6000 x 2000 mm |
|
Laser power |
1000W/1500W/2000W/3000W/4000W | ||
|
Transmission |
Synchronized dual large torque servo motor | ||
|
Loading method |
Parallel shuttle exchange table | ||
|
Positioning speed |
140 m/min | ||
|
acceleration |
1.5G | ||
|
Positioning accuracy |
± 0.05mm （VDI/DGQ 3441） | ||
|
Repositioning accuracy |
± 0.03mm（VDI/DGQ 3441） | ||
|
Power |
10KW | 11KW | 12KW |
|
Weight（body） |
9500Kg | 11000Kg | 13500Kg |
|
Dimension |
890x300x220 | 1200x360x220 | 1550x420x220 |
|
Laser power |
CS |
SS |
Al |
Copper |
Brass |
|
1kw |
12mm |
4mm |
4mm |
2mm |
2mm |
|
2kw |
16mm |
8mm |
8mm |
4mm |
4mm |
|
3kw |
20mm |
10mm |
10mm |
8mm |
8mm |
|
4kw |
25mm |
15mm |
15mm |
10mm |
10mm |
