General Features

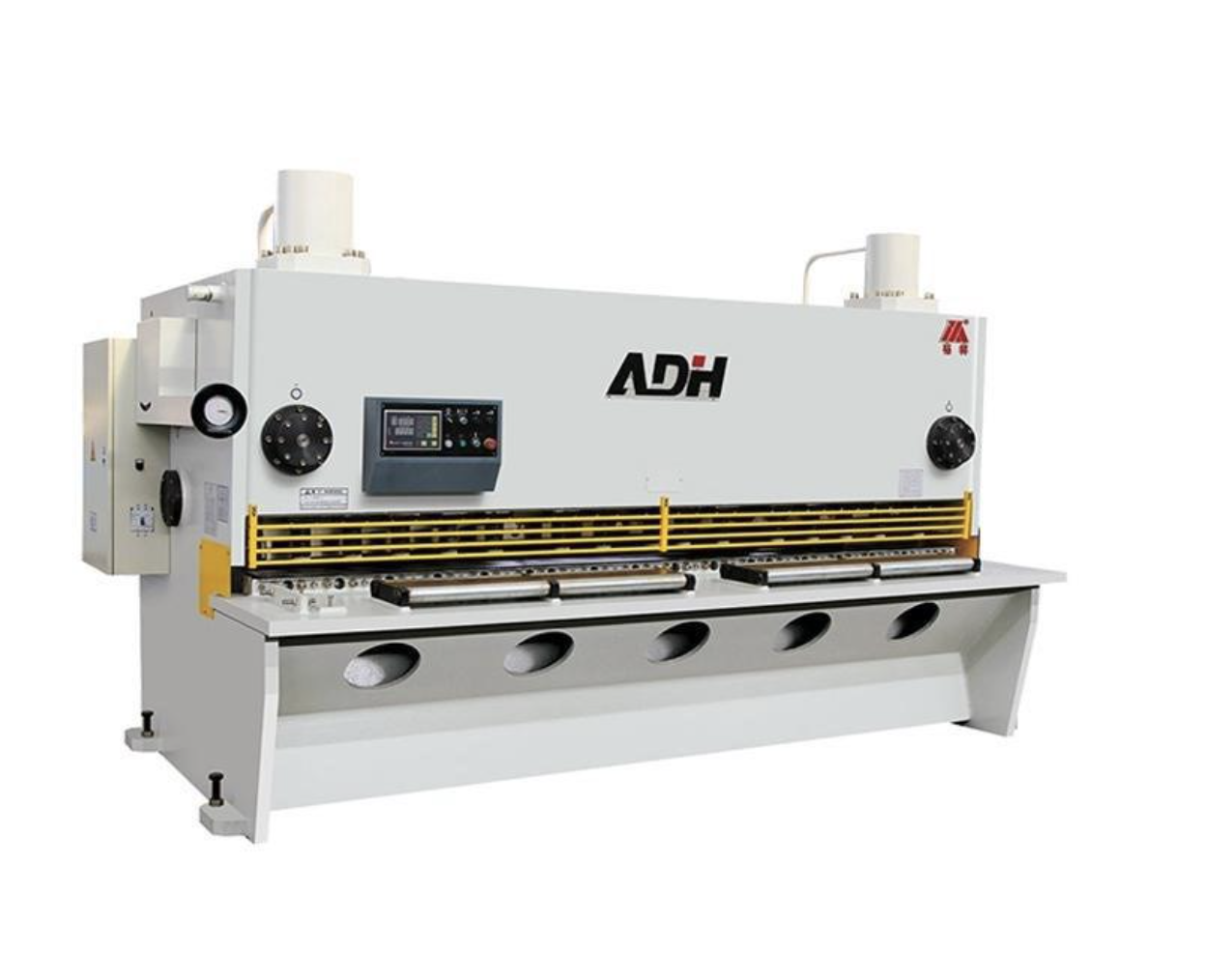

- ADH Guillotine Shearing machine adopt ball screw,linear guide and servo motor to drive the back gauge with high positioning accuracy
- Integrated steel welded structure,eliminate stress by vibration,with good rigidity
- Adopt the advanced hydraulic integrated valve block which is in compact structure and will reduce piping connections, and improves system reliability and maintainability
- Optional Estun E200PS, DELEM DAC310s and DELEM DAC360s, Cybelec CT8 CNC controller
- Serials connection of oil cylinder to prevent the cutting angle changing during the operation of the shearing machine
- Accumulator return smooth and rapid
- Manual/automatic adjustment of blade clearance (depend on the controller), accurate, rapid and convenient
- Adjustable shear angle to reduce sheet distortion
- Motorized back gauge and position display make it convenient and precise
- Rolling material support ball will reduce the scratch and frictions as well
STANDARD COMPONENTS
- Hydraulic Valve: Rexroth
- Oil Pump: Sunny
- Oil Cylinder: Sunny
- Main Motor: Siemens
- Ball Screw Rod: Zeen/PMI
- Linear Guide: Zeen/Schneeberger
- Front Support: Normal Support
- Line Alignment Device: Light
- Front Fence: Welded Type
- Pedal Switch: Simple Emergency Stop Type
- Controller: E200PS
- Electrics: Schneider
OPTIONAL
- Main Motor: WNM
- Ball Screw Rod: HIWIN
- Linear Guide: HIWIN
- Front Support: Angle Adjustable Support
- Line Alignment Device: Laser Marking Device/Line Alignment
- Front Fence: Sheet Metal Type/Light Curtain Protection/Section Upturned
- Rear Protection: Light Curtain Protection
- Hydraulic Oil Cooling Device: Air Cooling Device
- Pedal Switch: Roller Pedal Switch
- Controller: DAC360
