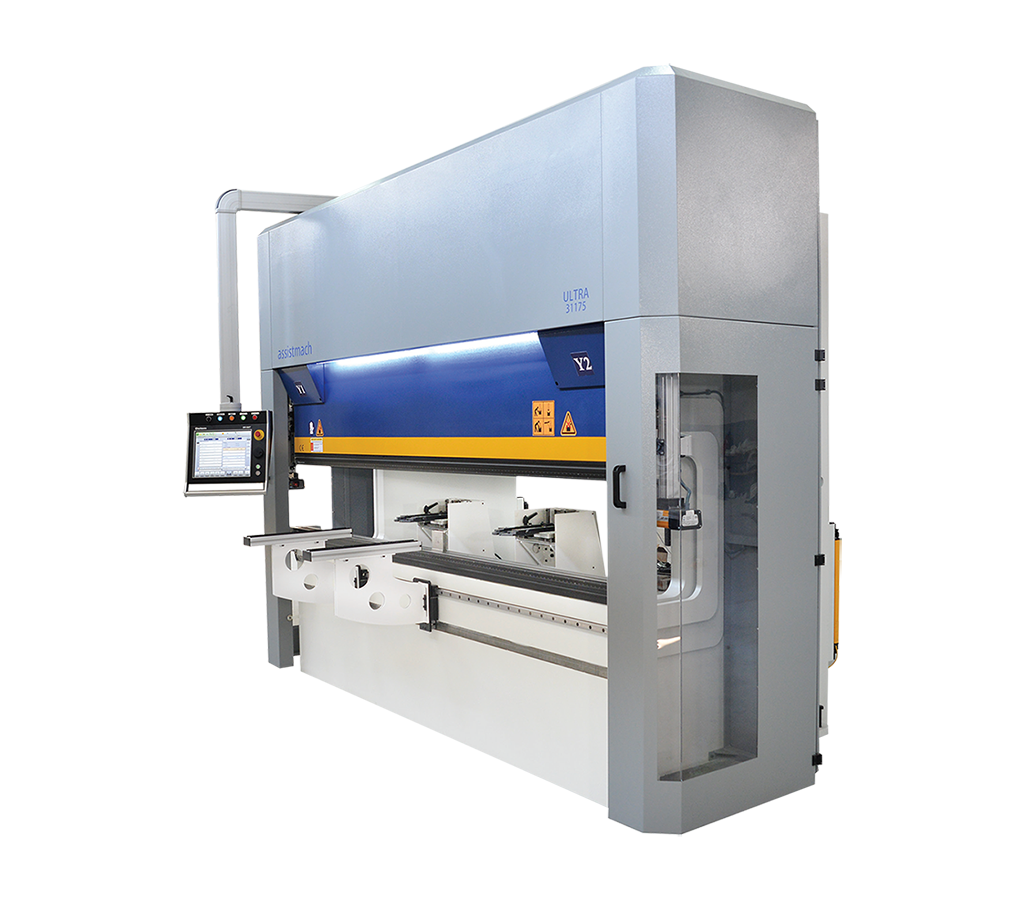

ULTRA SERIES
SERIES 4 AXIS CNC HYDRAULIC PRESS BRAKES
GENERAL SPECIFICATIONS
Hydraulic operation with two cylinders – Assistmach
High performance hydraulic gear pump – Rexroth
High pressure filter (with clogging detector and bypass) placed before all components
Air removal filter in the reservoir
Fast descent by gravity, bending phase and return of the ram are controlled electronically via a proportional flow valves – Rexroth
Bending force controlled by proportional pressure valves – Rexroth
Quality oil with high viscosity index
Frame is designed and sized using Analyze program
Hydraulic components from leading companies worldwide (Rexroth)
Connectors and system tube sizing according to din regulations
Flanged connectors and hoses according to sae regulations
Construction of cylinders with high quality materials, hardening and very accurate finishing for the sliding surfaces
Choice of seals and sizing of the housings is a result of many years of experience Preventive system flushing and thorough testing
We only use welded steel with high tensile strength and stiffness
FEATURES OF ULTRA SERIES
Standard 2 axis backguage
Fast and high accuracy servo motors
Resistance to crash
Maintenance free

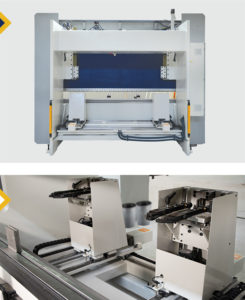

Precise and Robust Back Gauge system

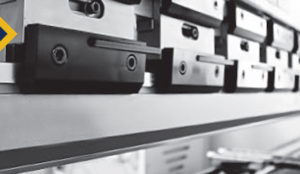

Quick release clamping

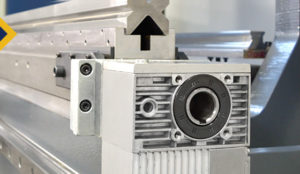

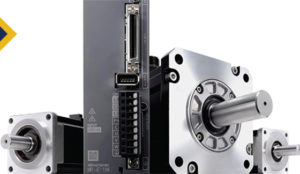

Mitsubishi Servo Motors

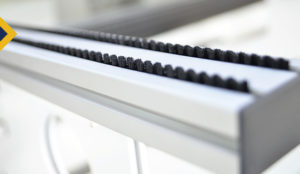

Front support arms with brushes are mounted on a linear guide rail system

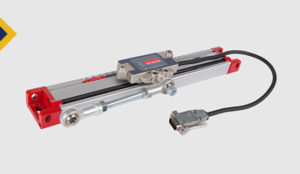

Linear encoder – Opkon/GIVI
CNC controlled motorized crowning system – Option

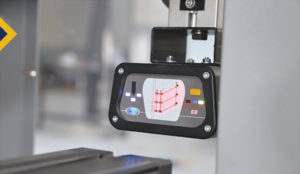

CE Safety system
Our machines are designed in accordance with Ce-Norms to ensure your safety with hydraulic, electric, appropriate height covers and laser light curtains.CE safety in tandem machines are also provided with light barriers
ULTRA SERIES CONTROL UNITS
Cybelec Modeva PAC
CUSTOMER BENEFITS
OGraphic 2D display with multi-simulation capability
Hand drawing of 2D parts with the TouchProfile function
Error and warning messages displayed on the console screen

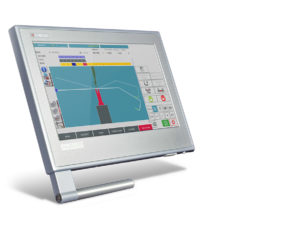

Cybelec Modeva 19T
CUSTOMER BENEFITS
Large touchscreen with a customizable area
Comfort and power with a flat and modern design
Direct import from most CAD/CAM systems

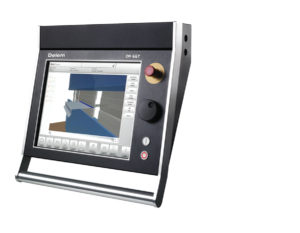

Delem 66 T
CUSTOMER BENEFITS
2D graphical touch screen programming mode
17″ high resolution colour TFT
Sensor bending & correction interface

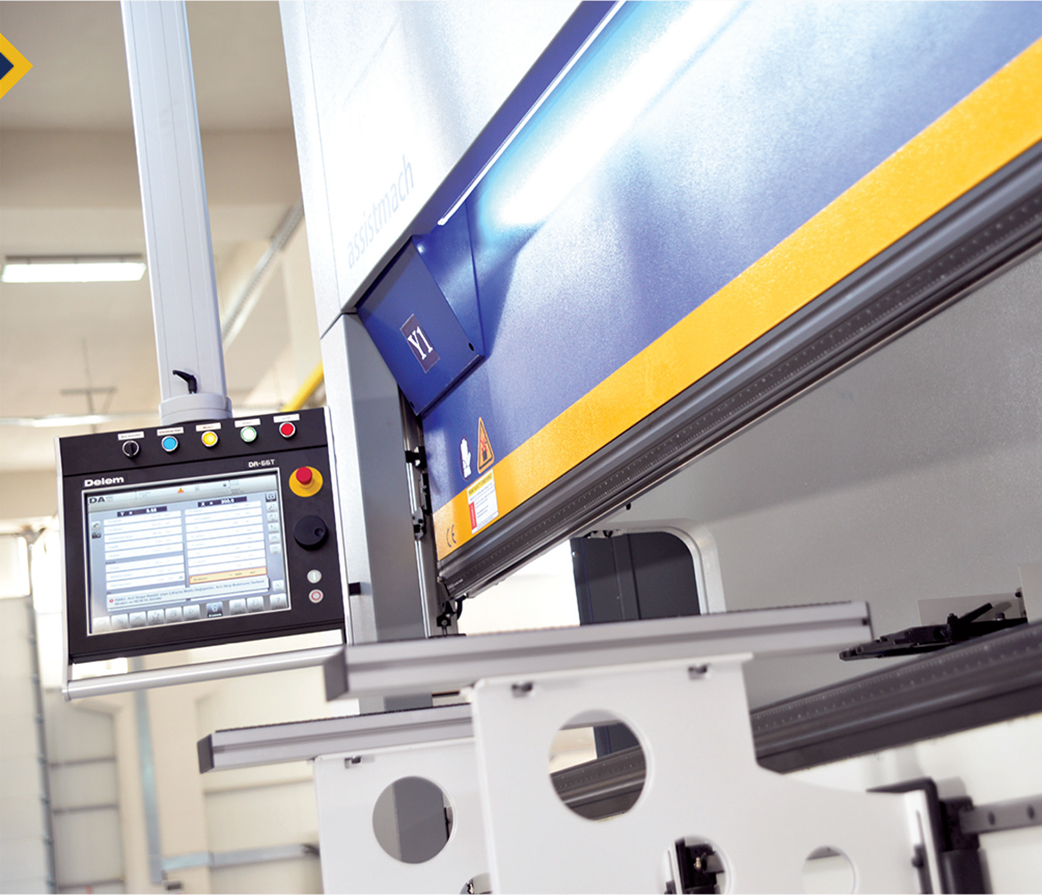

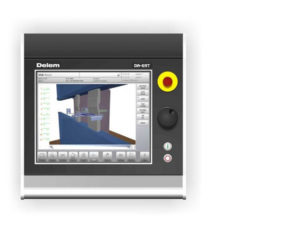

Delem 69 T
CUSTOMER BENEFITS
3D and 2D graphical touch screen programming mode
3D visualisation in simulation and production
Profile-T3D offline software
