Specifications
|
Name |

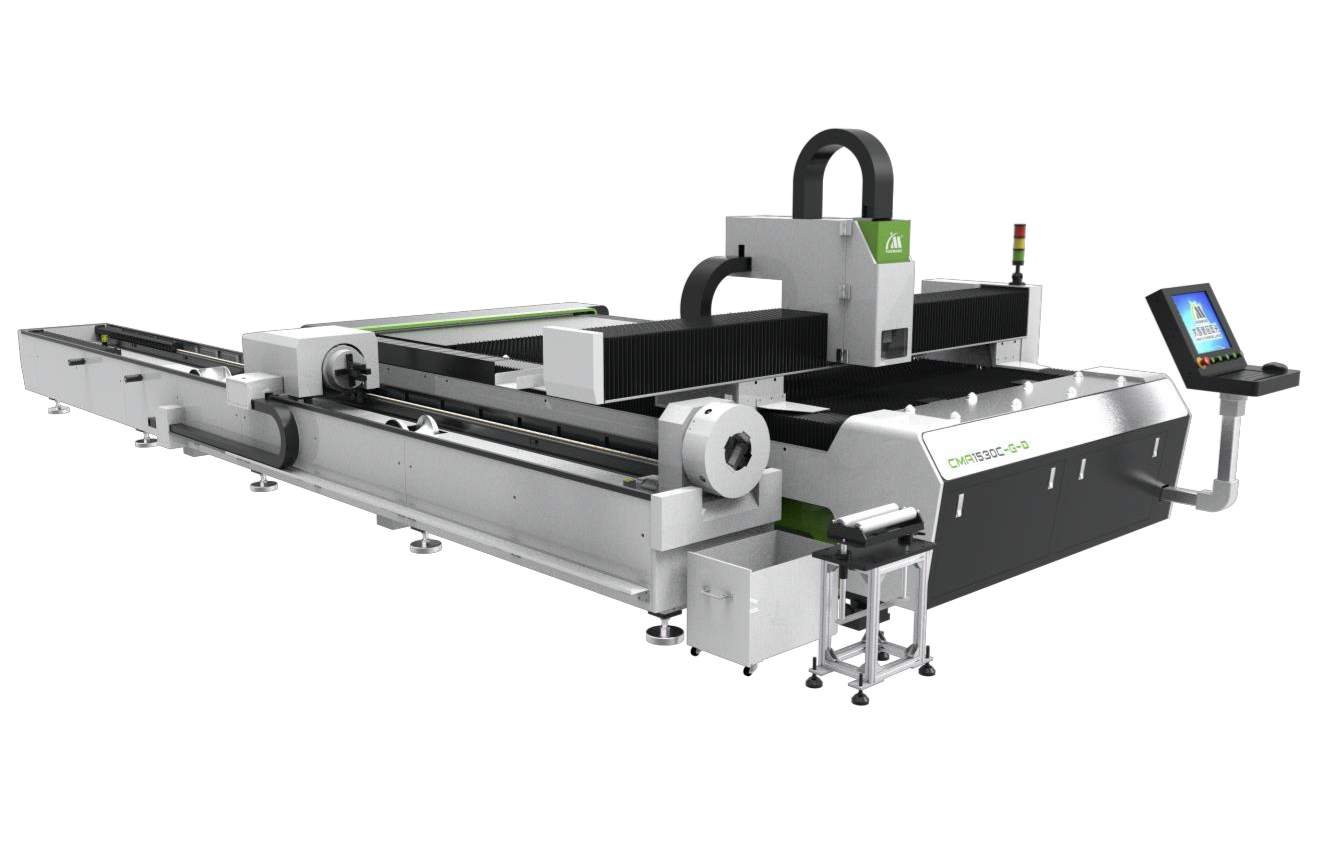

Laser cutting machine |
|
Sheet working area (length×width) |
3000mm×1500mm(effective cutting area) |
|
Tube working area (diameter×length) |
Ø120mm×6000mm(effective cutting area) |
|
Laser generator (optional) |
Germany IPG: 500W、700W、1000W、1500W、2000W |
|
Chine: 500W、800W、1000W、1500W、2000W |
|
|
Laser type |
Fiber laser generator |
|
Transmission system |
Gantry with rack & pinion |
|
Driving system |
Servo motor driving |
|
Work table |
Steel strips |
|
Max speed |
60m/min |
|
Max acceleration speed |
0.8G |
|
Lubrication system |
Full automatic, oiling reminding function |
|
Position Precision |
±0.03mm/1000mm |
|
Repositioning precision |
±0.02mm/1000mm |
|
Supported graphics format |
CAD，DXF etc. |
|
Working environment |
0-40°C density≤ 80%，no condensation |
|
Gross power |
23KW |
|
Power supply |
Three-phase 380V/60A/50Hz/60Hz |
|
Air demand |
High-pressure(N2、air):2.5MPa |
|
Low-pressure(O2):1MPa |
|
|
Main body +Tube cutting parts (length×width×height) |
8000mm×3000mm×2300mm |
|
Gross weight(KG) |
About 5000KG |
|
Min factory door dimension (width×height) |
2500mm×2500mm |
|
Hoisting weight |
5000KG or above |
