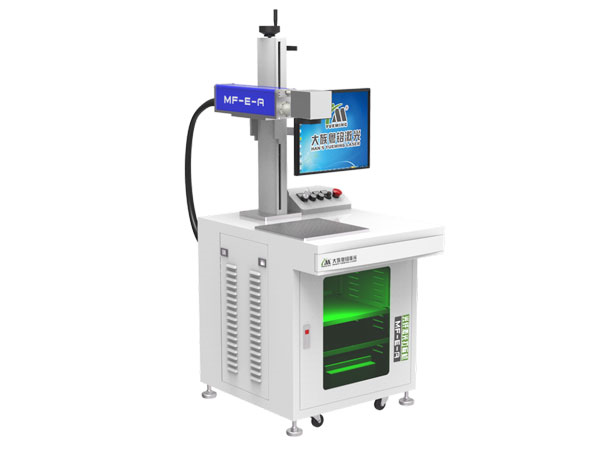

Standard Edition Fiber Marking Machine MF-E-A
Technical Parameter
| Model | MF-E-A standard edition |
| Features | 300*300mm marking table, uniform installing holes, suitable for different workpieces positioning. |
| Laser power(W) | 20/30/50/70/100/120 |
| Working area(mm) | 70 x 70 / 110 x 110 / 175 x 175 / 200 x 200/300 x 300/400 x 400 |
| Lifting height(mm) | 500(optional 800) |
| Minimum line width | 0.03mm |
| Minimum character | 0.2mm |
| Graphic format supported | BMP、PLT、AI、DXF etc. |
| Supply voltage | AC220V±10%,50Hz/60Hz |
| Machine dimension | 600mm×750mm×1270mm |
| Weight | 80Kg (Estimation) |
| Work environment | Clean, less dust,Temp:10~35°C, Humidity:5~85% |
| Total power | 1Kw |
